How to set up AutoDose in the Electrolux washing machine​? (standard detergent) (video)

Resolution

Question:

• How to set up AutoDose washing machine (standard detergent)

Applies to:

• washing machines with Autodose feature

Resolution:

1. When the activated tank reaches a low level of detergent, related indicator blinks slowly and continuously on the display.

Note: If the tanks are filled before the appliance is powered on for the first time, the AutoDose indicator will not blink.

Note: Do not refill the AutoDose tanks unless appliances indicates that one or both tanks are empty.

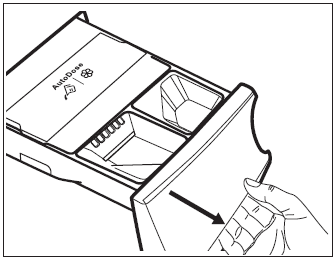

2. Open the detergent dispenser and lift up the AutoDose cover lid.

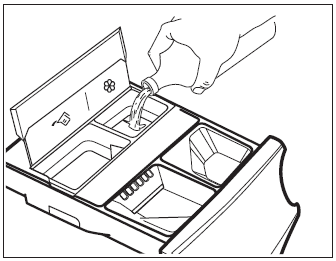

3. Gently pour only liquid detergent in the AutoDose detergent tank.

• Fill up to the maximum indicated level MAX.
• Check concentration on the back of the detergent.

• If your detergent has similar concentration your machine is already set and ready for use.

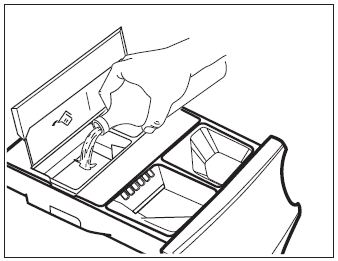

4. Gently pour only liquid softener in the AutoDose fabric softener tank.

• Fill up to the maximum indicated level MAX.
• no need to check concentration for softener

5. Lift down the AutoDose cover lid and gently close the detergent dispenser, till click engagement.

6. AutoDose can be deactivated the following way:

Once entered the AutoDose configuration mode by pressing Temp. and the Spin buttons:

• Tap on the button or button until display shows OFF: the AutoDose is excluded completely for related tank or both.

• After about 10 seconds the display returns to the programme information screen.

Instructional video
