How to set the AutoDose functionality in my Electrolux washing machine
Issue
- How to set the AutoDose functionality in my Electrolux washing machine
Applies to
- Electrolux washing machines with AutoDose functionality
Resolution

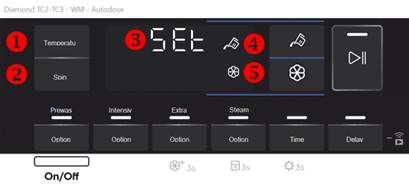

1. To enter in configuration mode, hold pressed the Temperature (1) and the Spin (2) buttons simultaneously for a few seconds until the display shows “SET” (3) on the left in the display and blinking detergent tank (4) and softener tank (5) indicators on the right in the display.

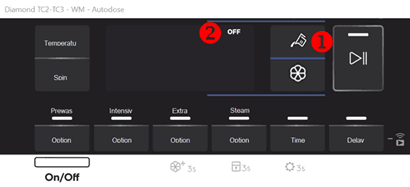

2. Touch detergent tank button (1). The display shows OFF (2).
3. BEFORE SET THE SOFTENER TANK YOU MUST OBLIGATORY SET THE DETERGENT TANK

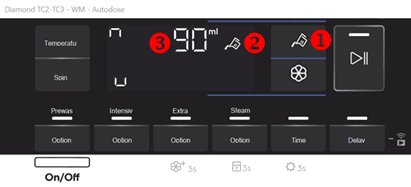

5. Touch again the detergent tank button (1). The display shows tank indicator (2) and the default detergent level (3).

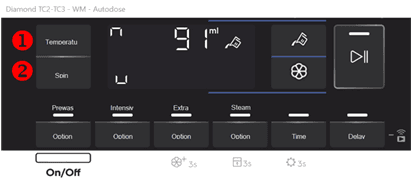

6. To set basic dosage touch the Temperature button (1) repeatedly to adjust the dosage upwards and the Spin button (2) to adjusts it downwards.
The minimum step is 1 ml
7. If no other action will be done, after 10 seconds, the display returns to the program and the AutoDose detergent tank is enabled.

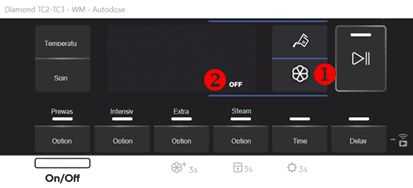

8. Touch Softener tank button (1). The display shows OFF (2).

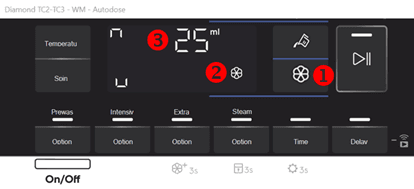

11. To set basic dosage touch the Temperature button (1) repeatedly to adjust the dosage upwards and the Spin button (2) to adjusts it downwards. The minimum step is 1 ml.
SUMMARY TABLE | ||
SETTING MODE (1) | STANDARD MODE (2) | |
DETERGENT TANK | OFF | DEACTIVATE |
ON | ACTIVATE/DEACTIVATE | |
SOFTENER TANK | OFF | DEACTIVATE |
ON | ACTIVATE/DEACTIVATE | |
(1): STATUS OF THE TANK SET DURING THE SETTING MODE
(2): ACTIONS PERMITTED IN THE STANDARD MODE
