How to use the oven Grill Function, types of grilling options

Issue

• How to use the oven Grill Function, types of grilling options

Applies to

• Electrolux Single Rotary Dial Oven
• Electrolux Double Rotary Dial Oven
• Electrolux Single Touch Control Oven
• Electrolux Double Touch Control Oven

Resolution

Important! When using any grill function the oven doors must stay closed.

There are usually 3 different types of Grilling options on Electrolux multifunction ovens (depending on Model)

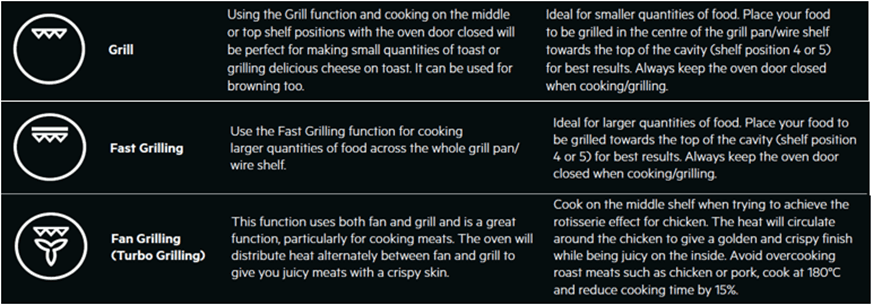

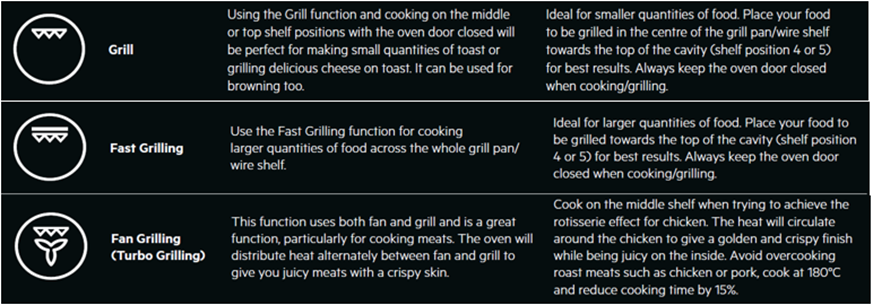

Grill Functions Explained

How to use the Grill function on Electrolux Ovens

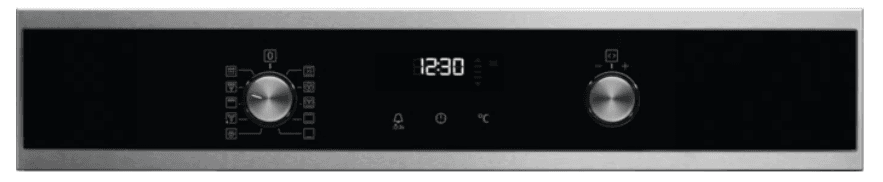

Rotary Dial

To set a grilling function using the rotary controls:

Step 1 - Turn the control dial for the heating functions to select a Grill function.

Step 2 - Turn the control dial to select the temperature.

Step 3 – Place food in the oven safely and close the oven door.

Step 4 – Monitor the food closely as grilling can be a very quick cooking method.

Step 5 – When food is ready, return the control dials to the off position to turn off the oven and remove food from the oven using a heatproof glove.

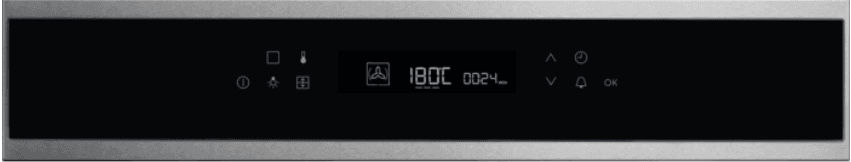

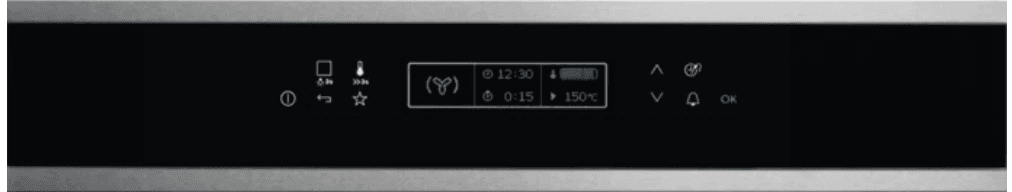

Touch Control

Step 1 - Turn on the oven and select Heating Functions.

Step 3 - Press: OK. The display shows the temperature.

Step 5 – Press: START.

Step 6 – Press: STOP to turn off the heating function. Remove food from the oven using a heatproof glove.

Step 7 – Turn off the oven

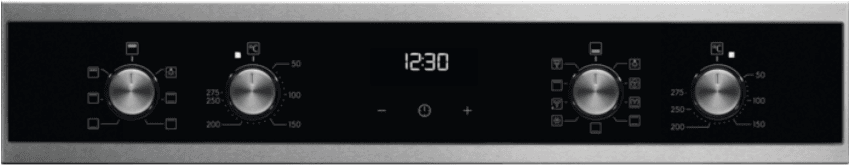

Double Oven Rotary Dial

Step 1 - Turn the control dial for the heating functions to select a Grill function.

Step 2 - Turn the control dial to select the temperature.

Step 3 – Place food in the oven safely and close the oven door.

Step 4 – Monitor the food closely as grilling can be a very quick cooking method.

Step 5 – When food is ready, return the control dials to the off position to turn off the oven and remove food from the oven using a heatproof glove.

Double Touch Control Model

• There will be two grilling options in your top oven and the symbols will look like this and

• There will be two grilling options in your bottom oven and the symbols will look like this and

Step 2. Select the grill function you would like to use and press OK.

Step3. Select the temperature and press OK

Step 5. Close the oven door.

Step 6. Monitor the food closely as grilling can be a quick cooking method.

Step 7. When food is ready, switch off the oven and remove the food from the oven using a heatproof glove.
