Blocked condenser (heat pump dryers)
Resolution
Check and clean the condenser
Time: 5 min
Cleaning the tumble dryer condenser (applicable to heat pump dryer)
If the symbol Condenser flashes on the display, inspect the condenser and its compartment. If it is dirty, clean it. Do the check not less than once a month as a dirty condenser will cause poor drying results.
Warning: Do not touch the metal surface with bare hands. Risk of injury. Wear protective gloves. Clean carefully to avoid damaging the metal surface.
Note: Do not operate the tumble dryer when the condenser is blocked with fluff. This could cause damage to the tumble dryer. This also increases energy consumption.
{UM|Access to the condenser may slightly differ depending on the dryer model, refer to the user manual }
Step 1: Open the door

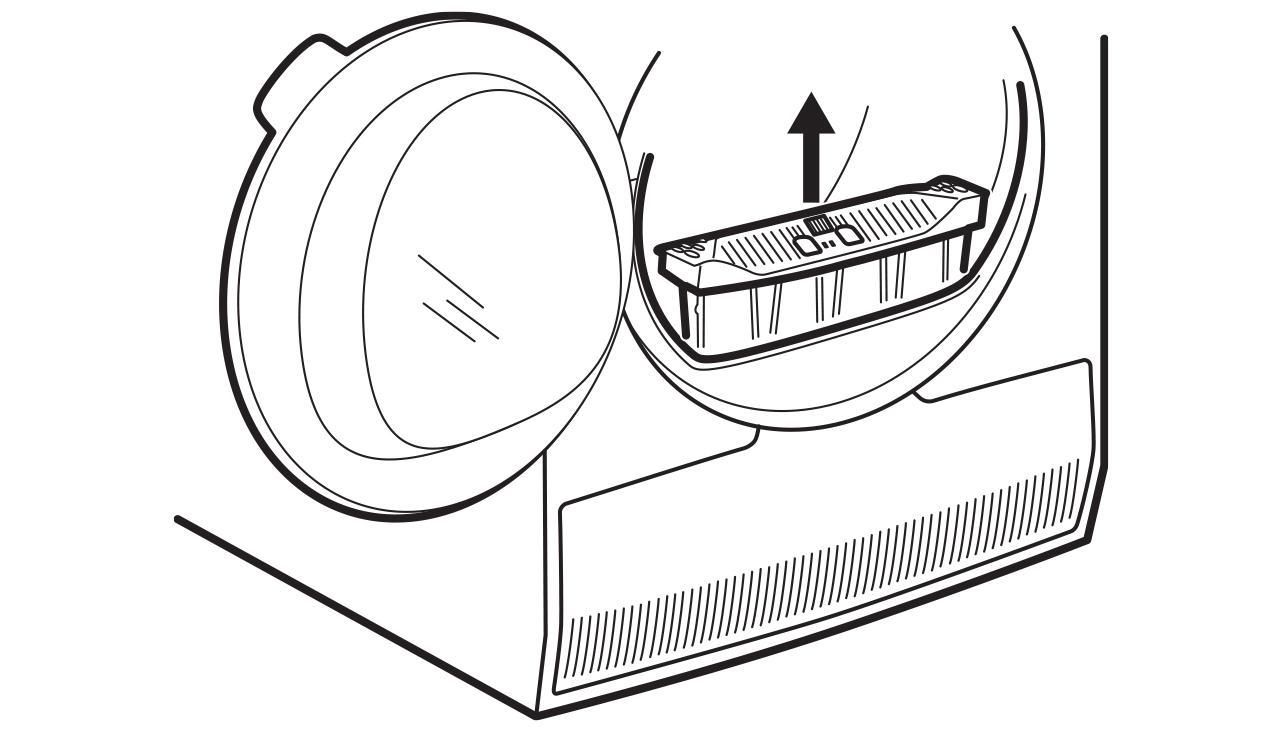

Pull the filter up.

Step 2: Open the condenser cover

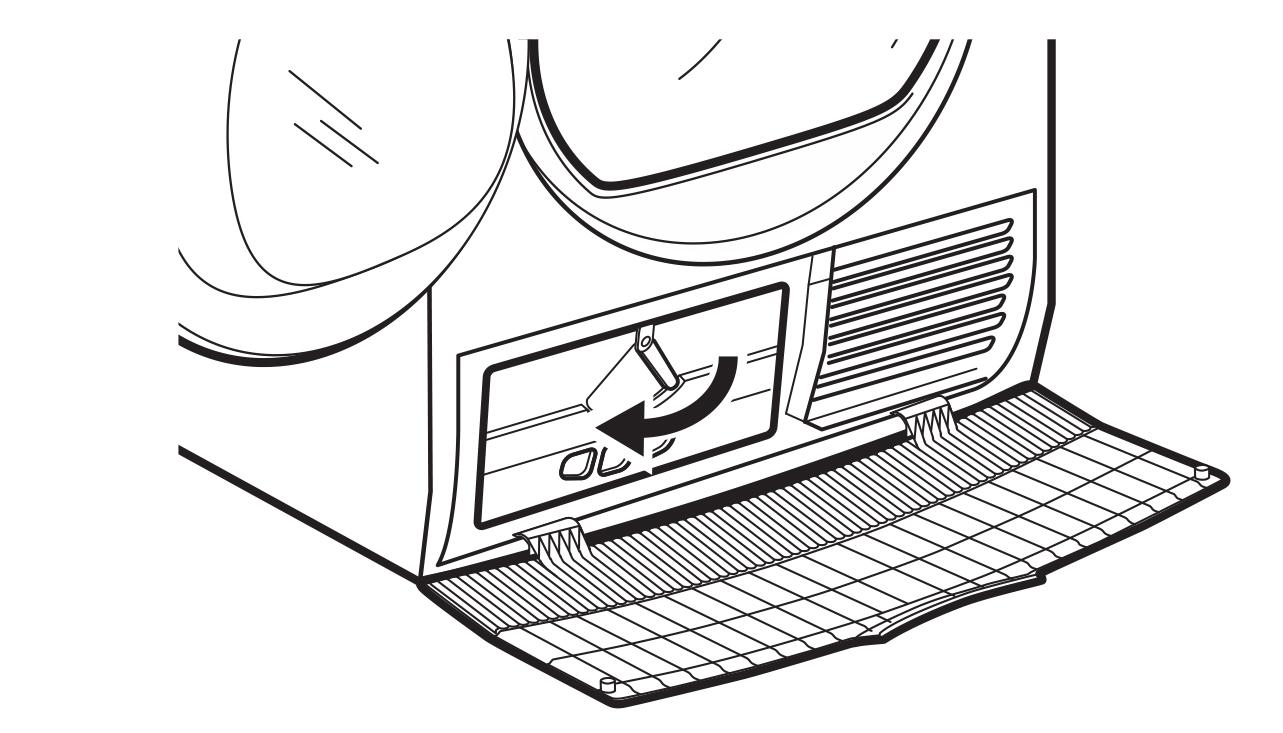

Step 3: Turn the lever to unlock the condenser lid

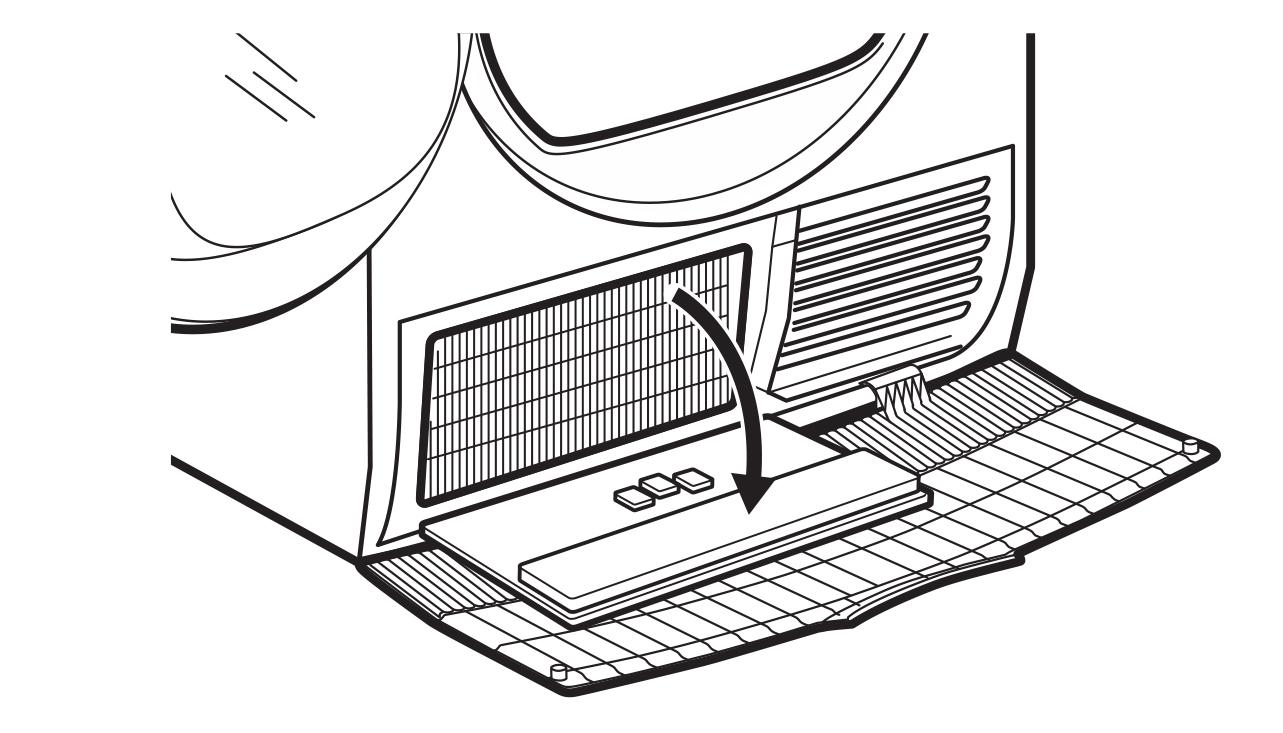

Step 4: Lower the condenser lid

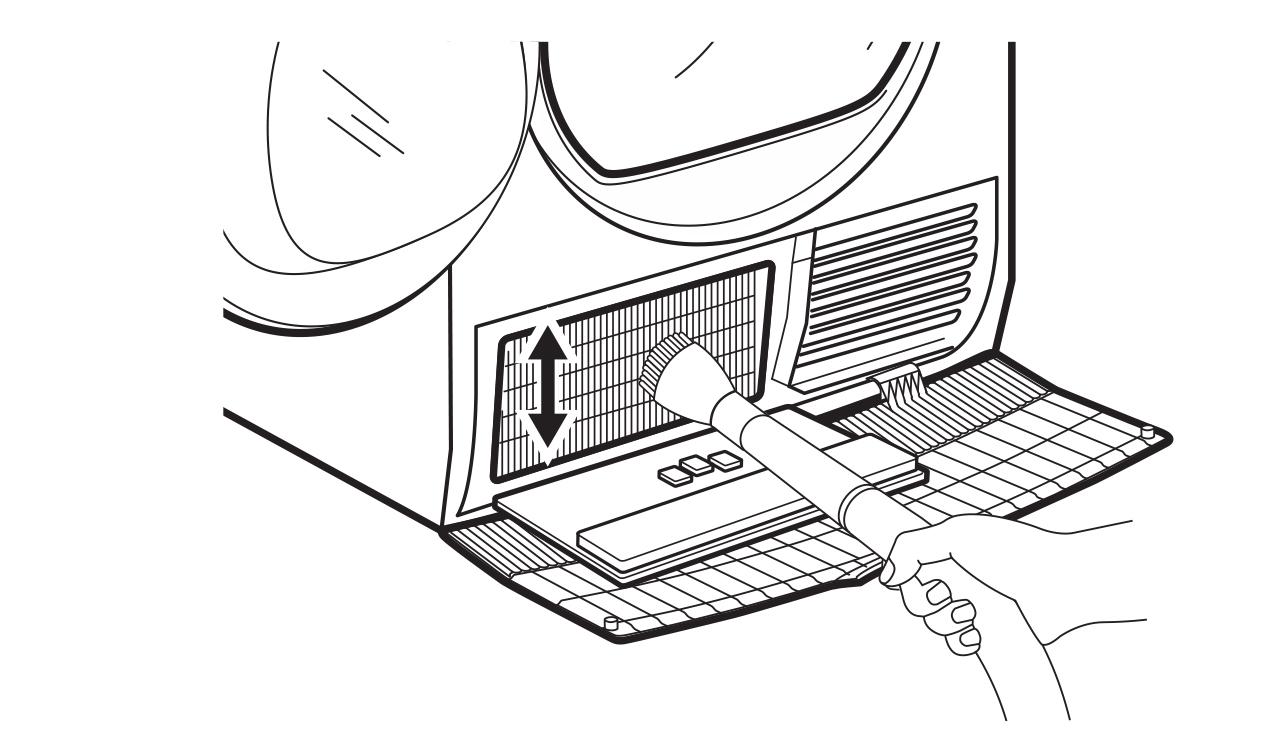

Step 5: If necessary, remove the fluff from the condenser and its compartment
